DPC Membrane Sheet
Introduction to DPC Membrane Sheet
In every modern construction project, damp protection has become a foundational requirement rather than an optional upgrade. Pakistan’s climate includes humidity, monsoon seasons, groundwater issues, and unpredictable rain patterns—making moisture control a central part of structural planning. This is where the DPC membrane sheet plays a crucial role.
The DPC sheet acts as a barrier between the foundation and the upper structure, preventing moisture from migrating into walls, floors, or interior plaster. Without this protection, buildings often face issues like wall efflorescence, mold, damp spots, cracked paint, and structural weakness over time.
What is a DPC Membrane Sheet?

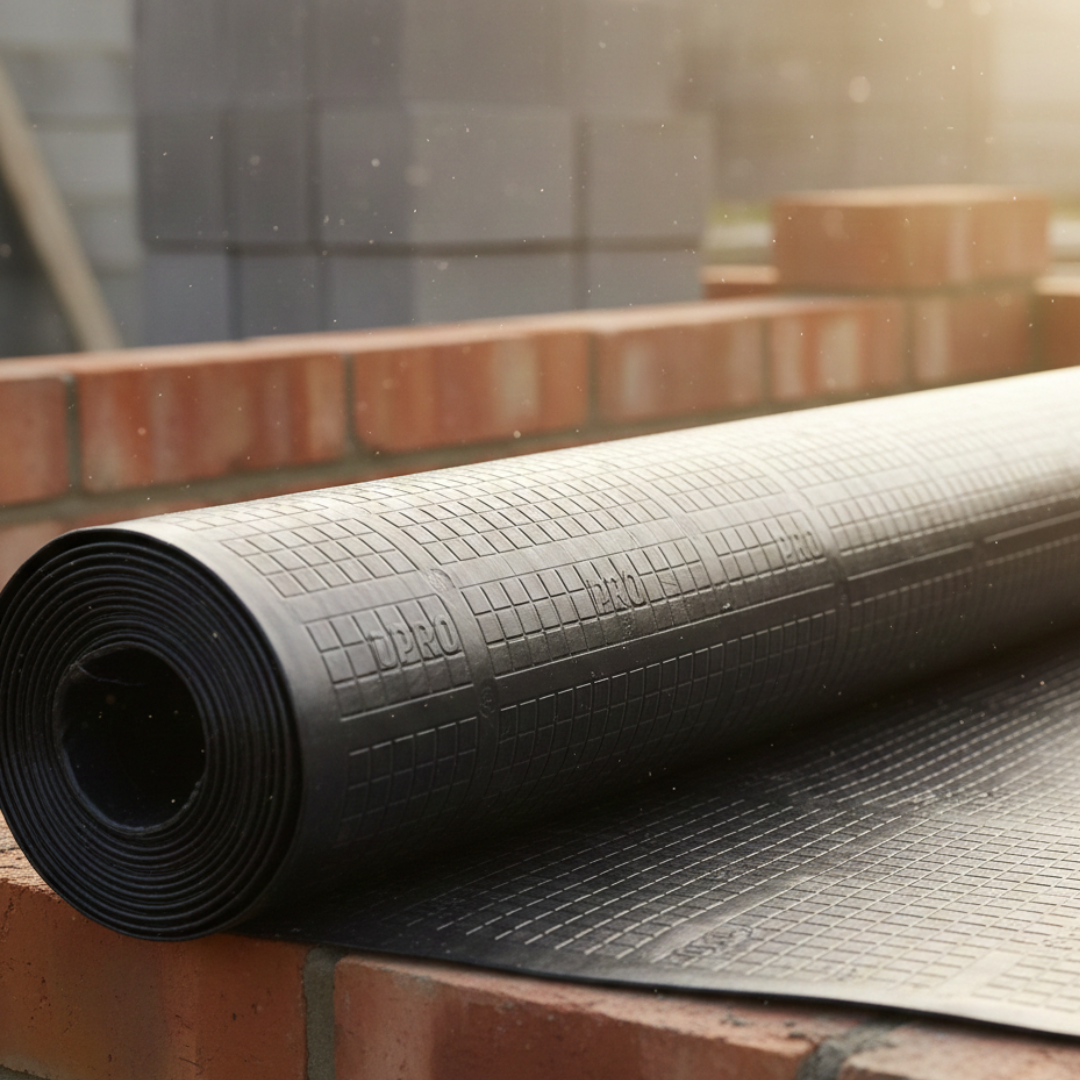

A DPC membrane sheet is a polyethylene-based damp proof course that prevents moisture from rising into a building. It is installed at the plinth level, under flooring, between brick layers, or inside foundation walls.
The primary purpose is to serve as a waterproofing membrane sheet that blocks capillary action—the natural tendency of water to climb upward through walls.
Unlike older methods like cement-sand DPC, modern membrane sheets are:
More durable
Flexible
Chemical-resistant
Faster to install
More effective in long-term protection

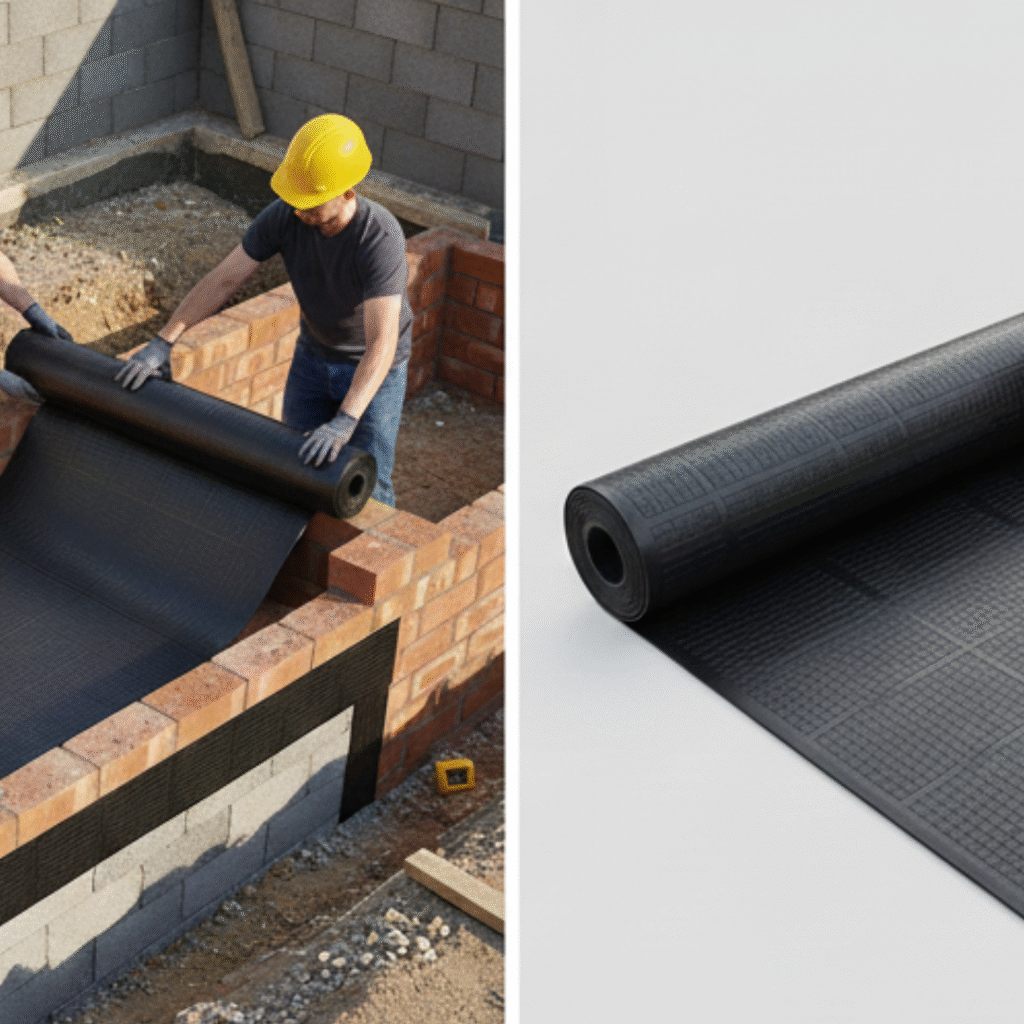

DPC Membrane Sheet Price in Pakistan (2025 Updated Market Rates)
In 2025, Pakistan’s construction market has stabilized after fluctuating raw material prices. Currently, the DPC membrane sheet price in Pakistan varies based on thickness, roll width, and brand.
DPC Membrane Sheet Price List in Pakistan (2mm Thickness – 50 Feet Roll
| Width | Length | Thickness | Price per Roll |
|---|---|---|---|
| 4 inch | 50 feet | 2 mm | Rs 2,200 |
| 9 inch | 50 feet | 2 mm | Rs 3,500 |
| 13 inch | 50 feet | 2 mm | Rs 4,500 |
DPC Membrane Sheet Price List in Pakistan (3mm Thickness – 50 Feet Roll)
| Width | Length | Thickness | Price per Roll |
|---|---|---|---|
| 4 inch | 50 feet | 3 mm | Rs 3,000 |
| 9 inch | 50 feet | 3 mm | Rs 4,200 |
| 13 inch | 50 feet | 3 mm | Rs 5,000 |
DPC Membrane Sheet Price List in Pakistan (4mm Thickness – 50 Feet Roll)
| Width | Length | Thickness | Price per Roll |
|---|---|---|---|
| 4 inch | 50 feet | 4 mm | Rs 3,500 |
| 9 inch | 50 feet | 4 mm | Rs 5,000 |
| 13 inch | 50 feet | 4 mm | Rs 5,500 |
Factors That Decide the Price of DPC Sheet
1. Thickness
The thicker the membrane, the higher the price. Thicker membranes offer better protection in moisture-heavy regions.
2. Material Type
Slight changes in density or material purity significantly impact price. High-density membranes are stronger and more durable.
3. Brand & Quality
Imported sheets often cost more due to shipping and duty charges. Local brands are more affordable with acceptable durability.
4. Roll Size
Wider and longer rolls cost more but reduce installation joints.
5. Market Demand
During peak construction seasons or monsoon, prices rise due to increased demand for moisture control barrier materials.
Types of DPC Membrane Sheets in Pakistan
DPC sheets come in different quality levels depending on construction needs.
1. Standard Polyethylene DPC Sheet
Most common in residential construction. Affordable and flexible.
2. High-Density DPC Sheet
Stronger tensile strength and better durability—ideal for foundations.
3. Reinforced DPC Membrane
Multi-layer sheet with added strength for heavy-duty applications like industrial sites.
4. Industrial-Grade Membrane
Designed for high-moisture areas such as basements, underground rooms, and water-prone foundations.
Detailed Benefits of DPC Membrane Sheet
1. Prevents Rising Damp
Stops moisture from traveling upward through masonry, reducing chances of mold and fungal growth.
2. Enhances Structural Life
Water is the enemy of concrete and brick structures. A DPC membrane adds decades of life to walls and foundations.
3. Low Installation Cost
Compared to chemical waterproofing, DPC sheets are significantly cheaper.
4. Flexible and Easy to Install
The sheet bends easily during installation, making it suitable for corners and complex structures.
5. Chemical & Acid Resistance
DPC sheets resist soil acidity and alkaline compounds present underground.
6. UV and Weather Resistance
If exposed temporarily, it withstands direct sunlight and rain.
Where is DPC Membrane Sheet Used? (Applications)
At plinth level
Between brick courses
Under concrete slabs
Below tiles and flooring
In basements
In warehouse flooring
Industrial and commercial buildings
Above retaining walls
Damp-prone agricultural structures
The foundation protection sheet is particularly important in areas where groundwater is high.

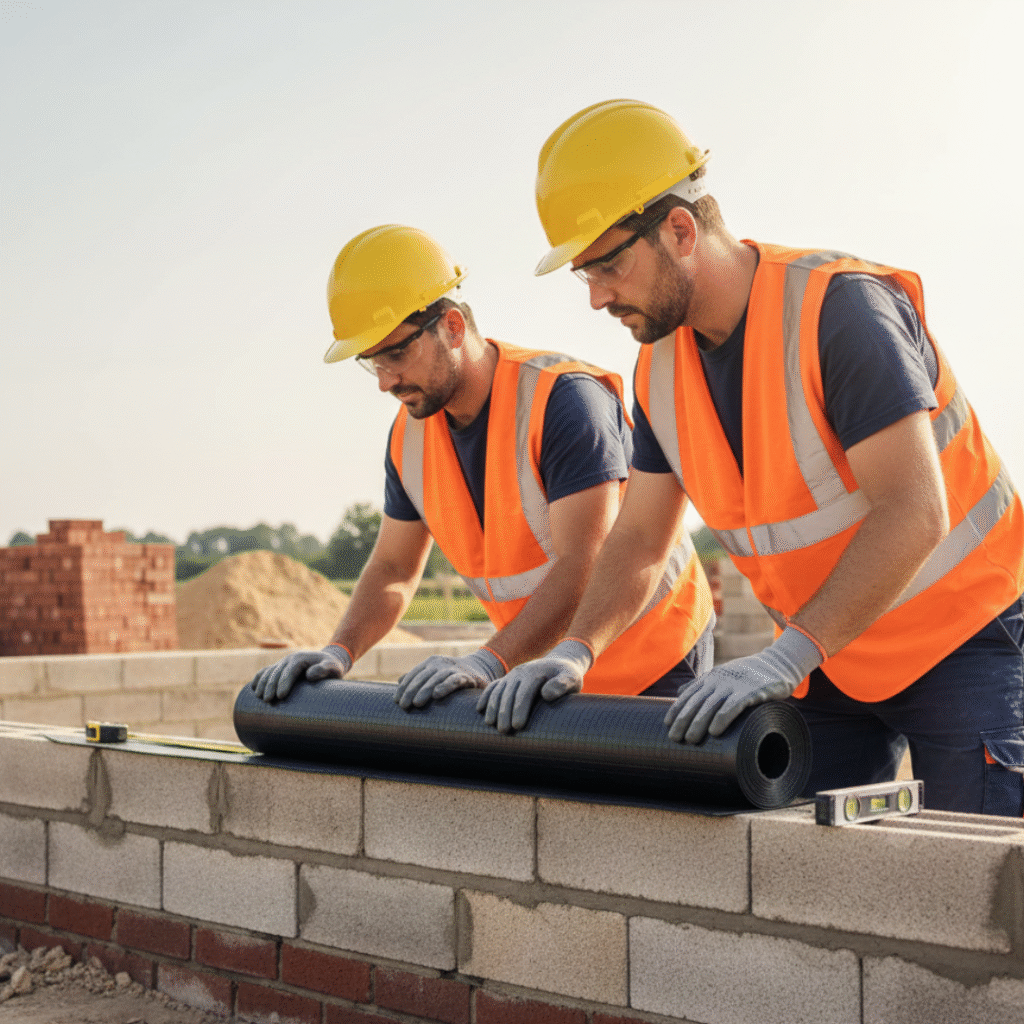

Installation Guide (Step-by-Step)
Installing a DPC sheet correctly is essential to ensure long-term moisture resistance.
1. Clean the Surface
Remove dust, loose debris, and uneven cement.
2. Cut the Membrane
Use a sharp cutter to create accurate sheet lengths as per the wall width.
3. Place the Sheet Properly
Ensure no wrinkles or folds.
4. Overlap Joints
Every overlap should be at least 100 mm to prevent water entry.
5. Seal the Edges
Use bitumen, adhesive, or construction tape for sealing.
6. Press Tight
Manual pressure or roller ensures proper bonding.
DPC Membrane Sheet vs. Bitumen Coating
| Feature | DPC Membrane | Bitumen Coating |
|---|---|---|
| Lifespan | Very High | Medium |
| Cost | Affordable | Medium |
| Application | Easy | Requires skill |
| Maintenance | None | Periodic |
| Consistency | Uniform | Depends on worker skill |
Common Mistakes to Avoid When Buying DPC Sheet
Choosing thin sheets for high-moisture zones
Buying unbranded, recycled-material sheets
Ignoring roll width compatibility
Not verifying the sheet’s tensile strength
Overlooking warranty details
Buying Tips & How to Select the Best DPC Sheet
Always prefer a construction-grade polyethylene sheet
Ensure the product comes with thickness certification
For industrial projects, prefer heavy-gauge membrane sheet
For basements, choose a long-life waterproofing barrier
For commercial buildings, use roll-on DPC barrier products
Imported sheets have better finishing but higher prices
For small projects, local brands provide better cost-value ratio
Future of DPC Membrane Sheets in Pakistan
Pakistan’s construction industry is rapidly modernizing. Rising awareness about waterproofing has increased demand for advanced solutions like:
Reinforced membranes
high-density moisture barrier products
multi-layer moisture solutions
eco-friendly damp proof systems
industrial-grade DPC technologies
As buildings become smarter and more energy-efficient, DPC sheets will remain a core requirement.
Conclusion
The DPC membrane sheet is one of the most essential components in ensuring long-term structural health in homes, buildings, and industrial units across Pakistan. Understanding the DPC membrane sheet price in Pakistan, along with thickness options, application methods, and material differences, helps builders and homeowners make the right purchasing choices.
Whether you’re constructing a new home in 2025 or renovating an existing building, investing in a high-quality damp proof membrane is critical for durability and safety.
FAQ’S
What is the purpose of using a DPC membrane sheet in construction?
A DPC membrane sheet is used to prevent moisture from rising through walls and foundations. It acts as a protective barrier, stopping dampness, mold, and long-term structural damage caused by water seepage.
What is the DPC membrane sheet price in Pakistan in 2025?
The price varies depending on thickness and width. On average, DPC sheets range from Rs. 150 to Rs. 450 per meter or Rs. 3,500 to Rs. 12,000 per roll, depending on material quality and thickness options like 2mm, 3mm, and 4mm.
How do I choose the right DPC membrane sheet thickness?
For small houses, 2mm or 3mm sheets are suitable. For double-story homes, commercial buildings, or high-moisture zones, 4mm or higher thickness is recommended to ensure long-term protection and durability.
Is a DPC membrane better than bitumen coating?
Yes, DPC membrane sheets generally offer longer lifespan, easier installation, and more consistent waterproofing. Bitumen coating requires skill, regular maintenance, and may not provide uniform protection compared to a membrane sheet.
